New Release

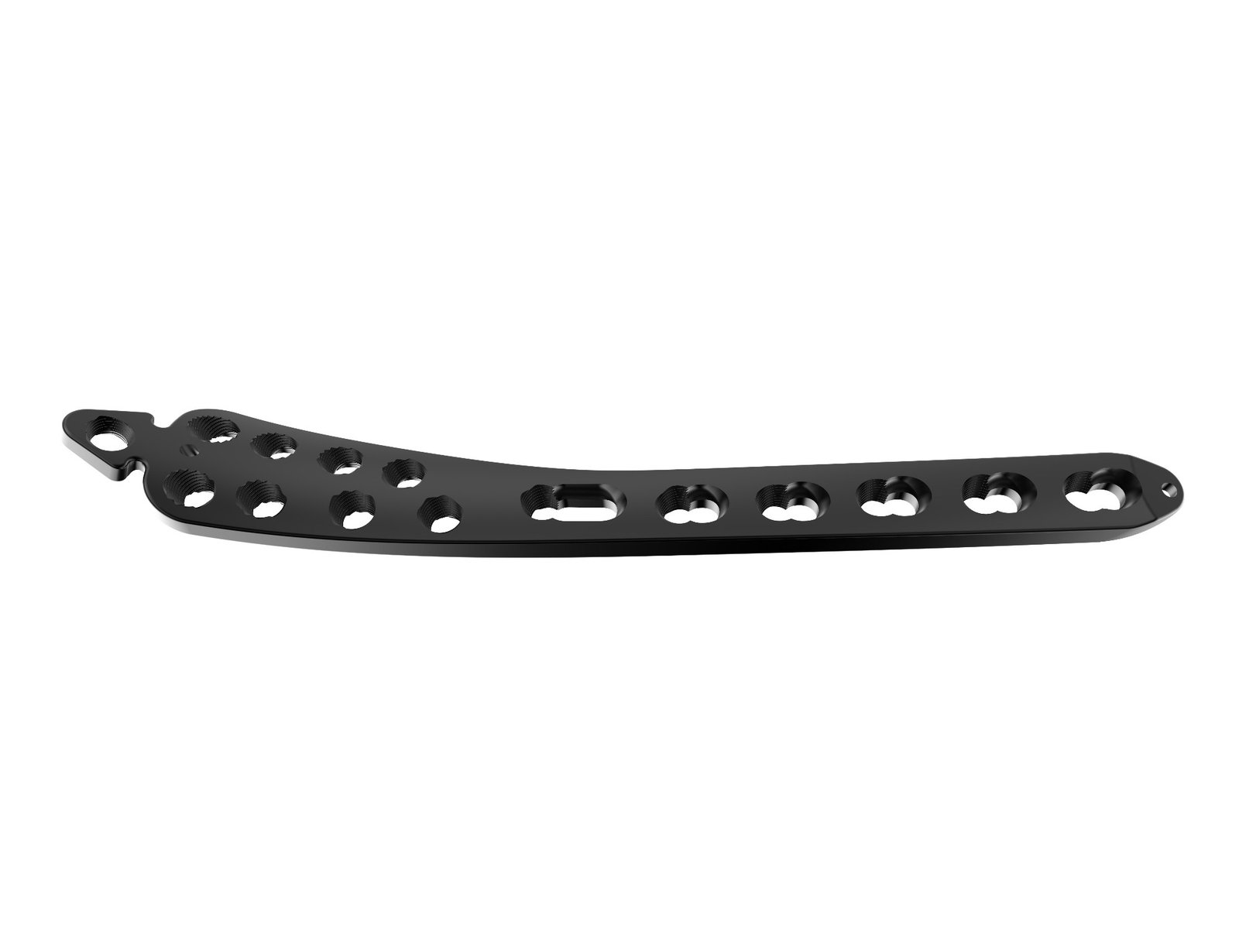

Tibia Locking Compression Plate
Key Technical Specifications
- check_circle Titanium: Ti-6Al-4V (Grade 5 Titanium)
- check_circle Stainless Steel: SS 316 L
mail
Inquire for Pricing
Typical Response Time: < 4 Hours
verified
ISO Certified
package_2
Global Shipping
autorenew
2000 Autoclave Cycles
science
FDA Registered
Description & Technical Data
RNIOX products can be Tailored to your exact requirements, Ensuring optimal performance, Quality, and Customer Satisfaction.
| Specification | Width | Thickness | Matching Screw Detail |
| 4 holes x 117mm (Left) | 11.0mm | 4.0mm | 3.5 mm Locking Screw
3.5 mm Cortical Screw
4.0 mm Cancellous Screw |
| 6 holes x 143mm (Left) | |||
| 8 holes x 169mm (Left) | |||
| 10 holes x 195mm (Left) | |||
| 12 holes x 221mm (Left) | |||
| 4 holes x 117mm (Right) | |||
| 6 holes x 143mm (Right) | |||
| 8 holes x 169mm (Right) | |||
| 10 holes x195mm (Right) | |||
| 12 holes x 221mm (Right) |
